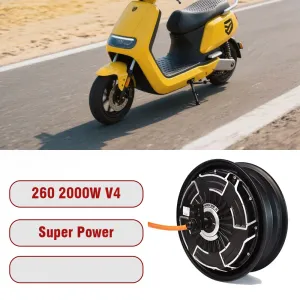

QS Motor QS212 1000W 30H Spoke (V1.12) vs QS Motor QS260 2000W V4 (14")
Verdict
The QS Motor QS260 2000W V4 (14") delivers 2000 W of power versus 1000 W, with 170.00 Nm torque compared to 109.00 Nm.
Specification Comparison
| Spec | QS Motor QS212 1000W 30H Spoke (V1.12) | QS Motor QS260 2000W V4 (14") |
|---|---|---|
| Power & Performance | ||
| Rated RPM | 450 RPM | -- |
| Min Voltage | 48 V | 48 V |
| Max Voltage | 48 V | 96 V+48V |
| Wattage | 1000 W | 2000 W+1000W |
| Pole Pairs | -- | 16 |
| Max Torque | 109.00 Nm | 170.00 Nm+61Nm |
| Physical | ||
| Weight (g) | 8980 g | -- |
| Dropout Width Min | 135.0 mm | 200.0 mm+65mm |
| Dropout Width Max | 135.0 mm | 200.0 mm+65mm |
| Axle Size | -- | M16 |
| Wheel Size | -- | 14 |
| Spoke Holes | 36 | -- |
| Features | ||
| Position | rear | rear |
| Drive Type | direct_drive | direct_drive |
| Pre-Laced | Yes | Yes |
| Disc Brake | Yes | Yes |
| Other | ||
| Peak Wattage | 2000 W | -- |
| Max Speed | 45 km/h | -- |
| Stator Diameter | 212 mm | -- |
| Rotor Diameter | -- | 260 mm |
| Magnet Height | 30 mm | 35 mm+5mm |
| Shaft Config | double | configurable |
| Rim Attachment | spoke | integrated |
| Platform Version | -- | V4 |
| Pricing | ||
| Sellers in Stock | 0 | 0 |
