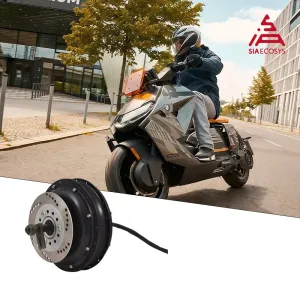

QS Motor QS205 2000W V3 Spoke (Moped)
QS205 2000W V3 Spoke Hub Motor for moped/motorcycle builds — BLDC direct drive. 205mm stator, 16 pole pairs. 72V default, 24-70 km/h. 168 Nm torque. 6kW peak. 200mm dropout, 36 spoke holes. Compatible with 17"-26" rims. Dual hall sensor. IP65. 13.5 kg. Phase wire 10mm². 44A continuous / 100-150A peak DC.
In brief: 2000W direct drive rear hub motor. Fits 200.0mm dropout. 48–96V rated. Disc brake compatible.
Performance
- Drive Type
- Direct Drive
- Wattage
- 2000W
- Peak Wattage
- 6000W
- Rated Voltage
- 48–96V
- Pole Pairs
- 16
- Stator Diameter
- 205mm
- Max Torque
- 168.00Nm
- Max Speed
- 70km/h
Fitment
- Position
- Rear
- Dropout Width
- 200mm
- Axle Size
- M16
Wheel
- Pre-laced
- No
- Disc Brake
- Yes
- Spoke Holes
- 36
Physical
- Weight
- 13.5 kg
- IP Rating
- IP65
Ports & Connectors
Phase Wires3 wires
Motor Phase
1Phase A
2Phase B
3Phase C
Hall Sensor6 wires
TemperatureHall Sensor
15V Power
2Motor Temp
3Ground
4Hall A
5Hall B
6Hall C
