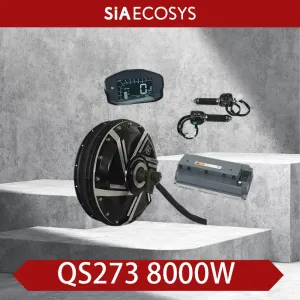

QS Motor QS273 8000W 50H V4 Spoke
QS273 8000W 50H V4 Spoke Hub Motor — BLDC direct drive for electric moped builds. 273mm stator diameter, 50mm magnet height, 16 pole pairs. 72V rated. 1210 RPM. 203+ Nm torque. 250A peak input / 600A peak phase current. 40 spoke holes for 17×4.25" moped rim. 200mm dropout. IP65. 25.5 kg.
In brief: 8000W direct drive rear hub motor. Fits 200.0mm dropout. 60–96V rated. Disc brake compatible.
Specs verified Jun 23, 2026
Where to Find
Prices tracked across 1 sellerPrice History
Price History
Price changes tracked by the crawler
No price history data yet
History is recorded when the crawler detects price changes or when product link prices are manually updated.
Reviews
No reviews yet — be the first to share your experience.
Sign in with Google to leave a review.
Specifications
Performance
- Drive Type
- Direct Drive
- Wattage
- 8000W
- Rated Voltage
- 60–96V
- Rated RPM
- 1210
- Pole Pairs
- 16
- Stator Diameter
- 273mm
- Max Torque
- 203.00Nm
Fitment
- Position
- Rear
- Dropout Width
- 200mm
Wheel
- Pre-laced
- No
- Disc Brake
- Yes
- Spoke Holes
- 40
Physical
- Weight
- 25.5 kg
- IP Rating
- IP67
Ports & Connectors
Phase Wires3 wires
Motor Phase
| Pin | Wire color | Function |
|---|---|---|
| 1 | Yellow | Phase A |
| 2 | Green | Phase B |
| 3 | Blue | Phase C |
Hall Sensor6 wires
TemperatureHall Sensor
| Pin | Wire color | Function |
|---|---|---|
| 1 | Red | 5V Power |
| 2 | White | Motor Temp |
| 3 | Black | Ground |
| 4 | Yellow | Hall A |
| 5 | Green | Hall B |
| 6 | Blue | Hall C |
