Name: VOTOL EM80 GTS Function Harness
Brand: VOTOL

The VOTOL EM80 GTS Function Harness comes included with: VOTOL EM80 GTSP-LIN. When you add one of these products to your build, this component is automatically included.

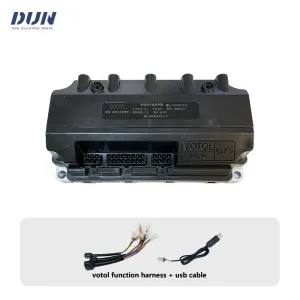

VOTOL EM80 GTS Function Harness

VOTOL Wire Harness

Function wiring harness for the VOTOL EM80 GTS/GTSP controller. Connects to the controller's 16-pin (2×8) mobo-style connector and breaks out to individual labeled plugs: throttle (3-wire), high brake (12V), low brake/reverse, ONE-LIN speed/display signal, ignition, three-speed/sport/parking mode selection, one-click repair, and UART programming access. Included with the controller — not sold separately.

In brief: Wire harness.

Specifications

Main Connector

Ports & Connectors

Ignition

Power Switch

1Power Switch Signal

Throttle / High Brake / Display

BrakeDisplayThrottle

1Brake Signal

2One-Wire Comm

3None

4Ground

5Throttle Signal

65V Power

Three Speed / Sport / Parking

BrakeDisplay

1Parking / E-Brake

2Gear Low

3Gear Sport

4None

5Ground

6Gear High

Low Brake / Reverse

DisplayBrake

1None

2Gear Reverse

3None

4Brake Signal

Program Port

UART

1Ground

25V Power

3UART TX

4UART RX

One Click Repair

COMM

1None

2One-Click Repair

Comes With

Resources

SIAECOSYS Controller Debugging Manual (Wiring & Programming)

Guide / TutorialOfficial SIAECOSYS/VOTOL debugging manual — complete wiring diagrams for all harness connectors, USB programming setup, and software configuration.
