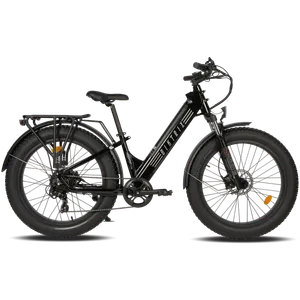

The Juggernaut Lite Step-Thru is Biktrix's entry-level fat-tire e-bike with a 750W rear hub motor (70Nm), 48V 13.2Ah 634Wh battery, and a lightweight 6061 aluminum step-through frame with removable top tube. At 29kg, it's the most approachable model in the Juggernaut family. Available in 24x4 (S frame) or 26x4 (L frame), with hydraulic disc brakes, 75mm front suspension, 6-speed Shimano drivetrain, and up to 40 miles of range. Integrated lights and rear rack included.
In brief: 750W Fat Tire. 48V 13.2Ah battery. Class 2 (Throttle 32 km/h). Up to 32 km/h. Aluminum frame. From $2299.
Classification
- E-Bike Class
- Class 2 (Throttle 32 km/h)
- Bike Type
- Fat Tire
Motor
- Motor Position
- Rear Hub
- Wattage
- 750W
- Torque
- 70.00 Nm
- Top Assist Speed
- 32 km/h
Battery
- Voltage
- 48.0V
- Capacity
- 13.2Ah
- Energy
- 634Wh
- Chemistry
- Li-ion
- Estimated Range
- 60 km – 64 km
- Removable
- Yes
Frame & Build
- Frame Material
- Aluminum
- Frame Style
- Step-Through
- Wheel Size
- 26" x 4" (Fat)
- Folding
- No
Drivetrain & Brakes
- Gears
- 6-speed
- Drivetrain
- Derailleur
- PAS Levels
- 5
- PAS Sensor
- Cadence
- Throttle
- Yes
- Brakes
- Hydraulic Disc
Features
- Max Payload
- 136 kg
- Suspension
- Front Only (Hardtail)
- Integrated Lights
- Yes
- Rear Rack
- Yes
- UL Certified
- No
Physical
- Weight
- 29 kg
