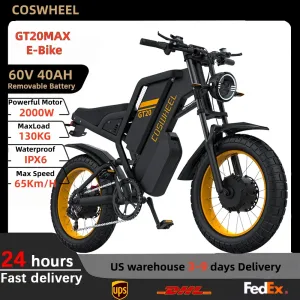

The COSWHEEL GT20 Max is a single-motor, full-suspension fat-tire electric bike powered by a 60V rear-hub brushless motor (1500W rated / 3000W peak, 120 Nm). It runs a 60V dual-battery system (25Ah + 15Ah removable Samsung 18650 packs, 40Ah / 2400Wh total), rides on 20" x 4.0" off-road tires, and pairs an 80mm-travel front fork with a 180mm-travel rear shock. Equipped with a Shimano 7-speed derailleur, 5-level pedal assist (speed sensor), a convertible thumb throttle, dual-piston hydraulic disc brakes (180mm rotors), an LCD display, and a 120-LUX angel-eye headlight. Sold Class 2/3 switchable; off-road top speed up to 45 mph (72 km/h).
In brief: 1500W Fat Tire. 60V 40Ah battery. Class 2 (Throttle 32 km/h). Up to 72 km/h. Aluminum frame. From $2116.
Specs verified Jun 26, 2026
Where to Find
Prices tracked across 2 sellers* WattWorks may earn a commission from some sellers linked here. Sellers are ranked by total price and stock status only. Learn more
Price History
No price history data yet
History is recorded when the crawler detects price changes or when product link prices are manually updated.
Reviews
No reviews yet — be the first to share your experience.
Sign in with Google to leave a review.
Specifications
Classification
- E-Bike Class
- Class 2 (Throttle 32 km/h)
- Bike Type
- Fat Tire
Motor
- Motor Position
- Rear Hub
- Wattage
- 1500W
- Peak Wattage
- 3000W
- Torque
- 120.00 Nm
- Top Assist Speed
- 72 km/h
Battery
- Voltage
- 60.0V
- Capacity
- 40Ah
- Energy
- 2400Wh
- Chemistry
- Li-ion
- Estimated Range
- 128 km – 233 km
- Charge Time
- 8.0 hrs
- Removable
- Yes
Frame & Build
- Frame Material
- Aluminum
- Frame Style
- High Step
- Wheel Size
- 20" x 4" (Fat)
- Folding
- No
Drivetrain & Brakes
- Gears
- 7-speed
- Drivetrain
- Derailleur
- PAS Levels
- 5
- PAS Sensor
- Cadence
- Throttle
- Yes
- Brakes
- Hydraulic Disc
Features
- Max Payload
- 150 kg
- Suspension
- Full Suspension
- Integrated Lights
- Yes
- Rear Rack
- Yes
- Fenders
- Yes
- UL Certified
- Yes
Physical
- Weight
- 45 kg
- Dimensions (L×W×H)
- 180 cm × 690mm × 106 cm
