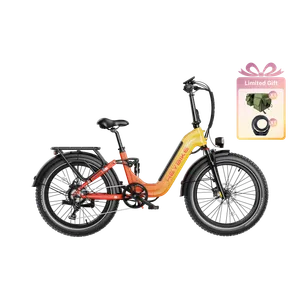

The Heybike Horizon is a folding full-suspension fat-tire e-bike with a 750W rear hub motor and 24"×4.0" tires. Features a low-step frame, Shimano 7-speed drivetrain, hydraulic disc brakes, and a removable 692Wh battery. Available in four vibrant colorways.
In brief: 750W Fat Tire. 48V 14.4Ah battery. Unclassified / Off-Road. Up to 45 km/h. Aluminum frame.
Specs verified Sep 1, 2026
Reviews
No reviews yet — be the first to share your experience.
Sign in with Google to leave a review.
Specifications
Classification
- E-Bike Class
- Unclassified / Off-Road
- Bike Type
- Fat Tire
Motor
- Motor Position
- Rear Hub
- Wattage
- 750W
- Peak Wattage
- 1400W
- Torque
- 80.00 Nm
- Top Assist Speed
- 45 km/h
Battery
- Voltage
- 48.0V
- Capacity
- 14.4Ah
- Energy
- 692Wh
- Chemistry
- Li-ion
- Estimated Range
- Up to 89 km
- Removable
- Yes
Frame & Build
- Frame Material
- Aluminum
- Frame Style
- Step-Through
- Wheel Size
- 24" x 4" (Fat)
- Folding
- Yes
Drivetrain & Brakes
- Gears
- 7-speed
- Drivetrain
- Derailleur
- PAS Levels
- 5
- PAS Sensor
- Cadence
- Throttle
- Yes
- Brakes
- Hydraulic Disc
Features
- Max Payload
- 150 kg
- Suspension
- Full Suspension
- Integrated Lights
- Yes
- UL Certified
- Yes
- Color
- Sunset
Physical
- Weight
- 36 kg
- Dimensions (L×W×H)
- 192 cm × 620mm × 118.1 cm
