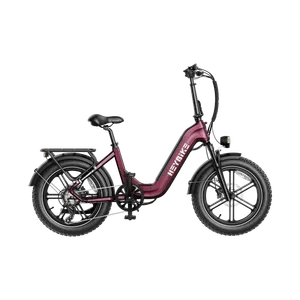

The Heybike Ranger S is a folding step-through fat-tire e-bike with a 1000W rear hub motor, torque sensor, and 20"×4.0" tires. Built around a 48V 14.4Ah (692Wh) battery with a 4A fast charger, it delivers up to 55 miles of range with hydraulic disc brakes and front suspension.
In brief: 1000W Fat Tire. 48V 14.4Ah battery. Unclassified / Off-Road. Up to 45 km/h. Aluminum frame.
Specs verified Jul 9, 2026
Reviews
No reviews yet — be the first to share your experience.
Sign in with Google to leave a review.
Specifications
Classification
- E-Bike Class
- Unclassified / Off-Road
- Bike Type
- Fat Tire
Motor
- Motor Position
- Rear Hub
- Wattage
- 1000W
- Peak Wattage
- 1800W
- Torque
- 100.00 Nm
- Top Assist Speed
- 45 km/h
Battery
- Voltage
- 48.0V
- Capacity
- 14.4Ah
- Energy
- 692Wh
- Chemistry
- Li-ion
- Estimated Range
- Up to 89 km
- Removable
- Yes
Frame & Build
- Frame Material
- Aluminum
- Frame Style
- Step-Through
- Wheel Size
- 20" x 4" (Fat)
- Folding
- Yes
Drivetrain & Brakes
- Gears
- 7-speed
- Drivetrain
- Derailleur
- PAS Levels
- 5
- PAS Sensor
- Torque
- Throttle
- No
- Brakes
- Hydraulic Disc
Features
- Max Payload
- 181 kg
- Suspension
- Front Only (Hardtail)
- Integrated Lights
- Yes
- UL Certified
- Yes
- Color
- Merlot Red
Physical
- Weight
- 32.66 kg
- Dimensions (L×W×H)
- 177.8 cm × 620mm × 127 cm
