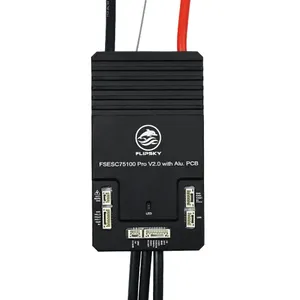

FLIPSKY 75100 Pro V2.0
14-84V 100A continuous (150A peak) VESC-based controller. FOC sine wave control with regenerative braking and integrated Bluetooth.
In brief: 14–84V controller. 100A continuous. 150A peak. VESC, FOC, dual mode, regen, field weakening, self-learning, dual motor pairing support. From $98 across 3 sellers.
Type
- VESC Based
- Yes
Electrical
- Voltage Range
- 14–84V
- Continuous Amps
- 100A
- Peak Amps
- 150A
Motor Features
- Regen Support
- Yes
- Drive Mode
- FOC
- Sensor Mode
- Dual Mode
- Field Weakening
- Yes
- Self-Learning
- Yes
- Dual Motor Support
- No
- Controller Pairing
- Yes
Inputs
- Throttle Support
- Yes
- PAS Support
- Yes
Display
- Supports Display
- Yes
- Requires Display
- No
- Protocols
- VESC
Power Switch
- Supports Power Switch
- Yes
- Requires Power Switch
- Yes
- Requires Pre-charge
- No
Programming
- Via Display
- No
- Via Phone
- Yes
- Via PC
- Yes
Physical
- Dimensions (L×W×H)
- 103mm × 58mm × 28mm
Ports & Connectors
Battery Input2 wires
Power
1Battery +
2Battery -
Motor Phases3 wires
Motor Phase
1Phase A
2Phase B
3Phase C
Motor Sensors/
Hall SensorTemperature
1Ground
2Hall C
3Hall B
4Hall A
5Motor Temp
65V Power
Servo/
PPM / Servo
1Ground
25V Power
3PPM Signal
Power Switch/
Power Switch
1Battery +
2Power Switch Signal
3Ground
CAN+POWER/
Power SwitchCAN Bus
1Remote Power On
25V Power
3CAN High
4CAN Low
5Ground
COMM/
COMMUART
15V Power
23.3V Power
3Ground
4ADC Channel 1
5UART RX
6UART TX
7ADC Channel 2
8ADC Channel 3
USB/
Included Components
Where to Find
Prices tracked across 5 sellersAliExpress - ESkate DIY Store
$91.57 + free shipping
Checked 1d ago
Amazon - FLIPSKY
$104.39 + free shipping
Checked 1d ago
AliExpress - FLIPSKY Official Store
$122.38 + free shipping
Checked 1d ago
FLIPSKY
$98.00 + $38.00 shipping
Checked 7h ago
AliExpress - RC Hobby Model Store
$124.20 + $21.87 shipping
Checked 1d ago
Shipping estimates are for the contiguous US and may vary by location.
