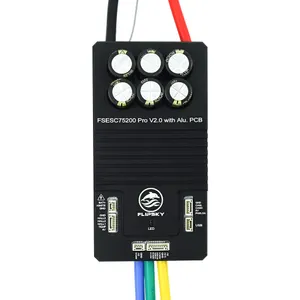

FLIPSKY 75200 Pro V2.0
14-84V 150A continuous (300A peak) VESC-based FOC controller. Aluminum PCB design with built-in Bluetooth, power switch, regenerative braking, and support for USB/CAN/UART/SPI communication.
In brief: 14–84V controller. 150A continuous. 300A peak. VESC, FOC, dual mode, regen, field weakening, self-learning, dual motor pairing support. From $145 across 3 sellers.
Type
- VESC Based
- Yes
Electrical
- Voltage Range
- 14–84V
- Continuous Amps
- 150A
- Peak Amps
- 300A
Voltage-Dependent Current Ratings
- 50V
- 200A
- 75V
- 150A
Motor Features
- Regen Support
- Yes
- Drive Mode
- FOC
- Sensor Mode
- Dual Mode
- Field Weakening
- Yes
- Self-Learning
- Yes
- Dual Motor Support
- No
- Controller Pairing
- Yes
Inputs
- Throttle Support
- Yes
- PAS Support
- Yes
Display
- Supports Display
- Yes
- Requires Display
- No
- Protocols
- VESC
Power Switch
- Supports Power Switch
- Yes
- Requires Power Switch
- Yes
- Requires Pre-charge
- No
Programming
- Via Display
- No
- Via Phone
- Yes
- Via PC
- Yes
Physical
- Dimensions (L×W×H)
- 130mm × 68mm × 41mm
Ports & Connectors
Battery Input2 wires
Power
1Battery +
2Battery -
Motor Phases3 wires
Motor Phase
1Phase A
2Phase B
3Phase C
Motor Sensors/
TemperatureHall Sensor
15V Power
2Motor Temp
3Hall A
4Hall B
5Hall C
6Ground
Servo/
PPM / Servo
1PPM Signal
25V Power
3Ground
Power Switch/
Power Switch
1Battery +
2Power Switch Signal
3Ground
CAN+POWER/
CAN BusPower Switch
1Ground
2CAN Low
3CAN High
45V Power
5Remote Power On
COMM/
COMMUART
1ADC Channel 3
2ADC Channel 2
3UART TX
4UART RX
5ADC Channel 1
6Ground
73.3V Power
85V Power
USB/
