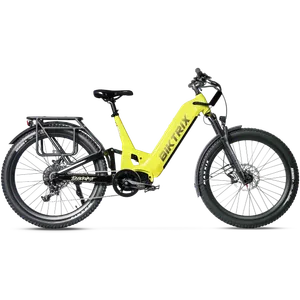

The Juggernaut FS Step-Thru MTB combines the Bafang Ultra M620 (1500W, 200Nm) with 27.5x2.8 Maxxis Rekon tires on a full-suspension step-through aluminum frame. The 52V 25Ah 1300Wh battery delivers up to 100km range, expandable to 160km with the range extender. Rockshox 35 Gold TK front fork (160mm) and DNM AO-38RC rear shock (53mm), Tektro E725 quad-piston hydraulic brakes, and SRAM NX 11-speed drivetrain.
In brief: 1500W Mountain. 52V 25Ah battery. Class 2 (Throttle 32 km/h). Up to 32 km/h. Aluminum frame. From $4199.
Classification
- E-Bike Class
- Class 2 (Throttle 32 km/h)
- Bike Type
- Mountain
Motor
- Motor Position
- Mid-Drive
- Wattage
- 1500W
- Torque
- 200.00 Nm
- Top Assist Speed
- 32 km/h
Battery
- Voltage
- 52.0V
- Capacity
- 25Ah
- Energy
- 1300Wh
- Chemistry
- Li-ion
- Estimated Range
- 100 km – 100 km
- Removable
- Yes
Frame & Build
- Frame Material
- Aluminum
- Frame Style
- Step-Through
- Wheel Size
- 27.5" / 650b
- Folding
- No
Drivetrain & Brakes
- Gears
- 11-speed
- Drivetrain
- Derailleur
- PAS Levels
- 5
- PAS Sensor
- Cadence + Torque
- Throttle
- Yes
- Brakes
- Hydraulic Disc
Features
- Max Payload
- 120 kg
- Suspension
- Full Suspension
- Integrated Lights
- No
- UL Certified
- No
Physical
- Weight
- 32.7 kg
