Options
Frame Style
High StepStep-Through

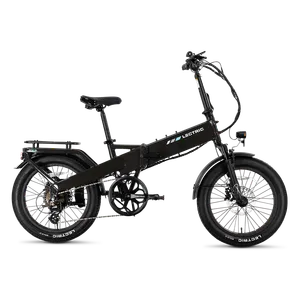

The Lectric XP4 is a foldable fat-tire e-bike with a 500W continuous / 1,092W peak Stealth M24 rear hub motor, 48V 10.4Ah (500Wh) battery, 8-speed drivetrain, and hydraulic disc brakes. Features a torque sensor, 5 assist levels, thumb throttle, 3.5" TFT color display, and integrated rear rack rated to 150 lbs. Folds to 37"×17"×29" in under a minute. Class 2/3 capable (28 mph max assist).
In brief: 500W Folding. 48V 10.4Ah battery. Class 3 (PAS only 45 km/h). Up to 45 km/h. Aluminum frame. From $999.
Classification
- E-Bike Class
- Class 3 (PAS only 45 km/h)
- Bike Type
- Folding
Motor
- Motor Position
- Rear Hub
- Wattage
- 500W
- Peak Wattage
- 1092W
- Torque
- 55.00 Nm
- Top Assist Speed
- 45 km/h
Battery
- Voltage
- 48.0V
- Capacity
- 10.4Ah
- Energy
- 500Wh
- Chemistry
- Li-ion
- Estimated Range
- 65 km – 80 km
- Charge Time
- 5.0 hrs
- Removable
- Yes
Frame & Build
- Frame Material
- Aluminum
- Frame Style
- Step-Through
- Wheel Size
- 20"
- Folding
- Yes
Drivetrain & Brakes
- Gears
- 8-speed
- Drivetrain
- Derailleur
- PAS Levels
- 5
- PAS Sensor
- Torque
- Throttle
- Yes
- Brakes
- Hydraulic Disc
Features
- Max Payload
- 150 kg
- Suspension
- Front Only (Hardtail)
- Integrated Lights
- Yes
- Rear Rack
- Yes
- Fenders
- Yes
- UL Certified
- Yes
Physical
- Weight
- 28.12 kg
- Dimensions (L×W×H)
- 1676.0mm × 470.0mm × 1194.0mm
