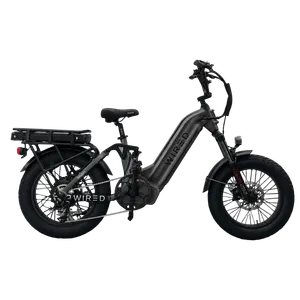

Wired Ebikes Raven (Graphite)
Options
The Wired Raven is a 72V full-suspension fat-tire e-bike with a 2000W (5000W peak) rear geared hub motor producing 210Nm of torque. It runs a dual-battery system (72V 20Ah front + 72V 15Ah rear, ~2520Wh total) using Samsung 50S 21700 UL2271-certified cells, with a switchable torque/cadence sensor, full color display, 4-piston hydraulic brakes, and 7-speed Shimano drivetrain. Ships configured as Class 2 (20 mph) and is software-configurable to Class 1/3 or unrestricted (45+ mph). Shown in Graphite.
In brief: 2000W Fat Tire. 72V 35Ah battery. Class 2 (Throttle 32 km/h). Up to 72 km/h. Aluminum frame. From $2499.
Specs verified Jun 26, 2026
Where to Find
Prices tracked across 1 seller* Shipping estimates are for the contiguous US and may vary by location.
Price History
Current best price $2,499.00. Over the past 90 days: low $2,499.00, high $2,499.00, average $2,499.00 — about average.
- Wired
| Date | Price | Shipping | Total | Change | Coupon | Rating | Sales | In Stock | Status |
|---|---|---|---|---|---|---|---|---|---|
Wired(3 records) | |||||||||
| Jun 17, 202607:23 AM | $2,499.00 | $325.00 | $2,824.00 | $0.00 | — | — | — | Yes | active |
| Jun 17, 202607:23 AM | $2,499.00 | $325.00 | $2,824.00 | $0.00 | — | — | — | Yes | active |
| Jun 17, 202607:23 AM | $2,499.00 | $325.00 | $2,824.00 | Initial | — | — | — | Yes | active |
Reviews
No reviews yet — be the first to share your experience.
Sign in with Google to leave a review.
Specifications
Classification
- E-Bike Class
- Class 2 (Throttle 32 km/h)
- Bike Type
- Fat Tire
Motor
- Motor Position
- Rear Hub
- Wattage
- 2000W
- Peak Wattage
- 5000W
- Torque
- 210.00 Nm
- Top Assist Speed
- 72 km/h
Battery
- Voltage
- 72.0V
- Capacity
- 35Ah
- Energy
- 2520Wh
- Chemistry
- Li-ion
- Estimated Range
- Up to 145 km
- Removable
- Yes
Frame & Build
- Frame Material
- Aluminum
- Frame Style
- Step-Through
- Wheel Size
- 20" x 4" (Fat)
- Folding
- No
Drivetrain & Brakes
- Gears
- 7-speed
- Drivetrain
- Derailleur
- PAS Sensor
- Cadence + Torque
- Throttle
- Yes
- Brakes
- Hydraulic Disc
Features
- Suspension
- Full Suspension
- Integrated Lights
- Yes
- UL Certified
- Yes
- Color
- Graphite
Physical
- Weight
- 64.41 kg
