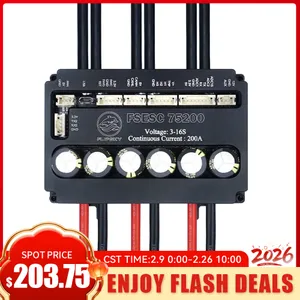

FLIPSKY FSESC 75200 75V (Aluminum Case)
Options
14–75V (16S) 200A continuous (400A peak) VESC-based single ESC in an aluminum case with water-cooling enclosure option. FOC + BLDC with regenerative braking and self-learning. For e-foil, surfboards, combat robots, and high-power e-motorcycles. 8AWG motor / 10AWG power wires. Configure via USB with VESC Tool.
In brief: 14–75V controller. 200A continuous. 400A peak. VESC, FOC, dual mode, regen, field weakening, self-learning support. From $271.
Specs verified Sep 12, 2026
Where to Find
Prices tracked across 1 seller* Shipping estimates are for the contiguous US and may vary by location.
* WattWorks may earn a commission from some sellers linked here. Sellers are ranked by total price and stock status only. Learn more
Price History
Current best price $271.00. Over the past 90 days: low $203.25, high $271.00, average $265.15 — up 2% vs average.
- FLIPSKY
- FLIPSKY
Reviews
No reviews yet — be the first to share your experience.
Sign in with Google to leave a review.
Specifications
Type
- VESC Based
- Yes
- Cooling
- Air
Electrical
- Voltage Range
- 14–75V
- Continuous Amps
- 200A
- Peak Amps
- 400A
Motor Features
- Regen Support
- Yes
- Drive Mode
- FOC
- Sensor Mode
- Dual Mode
- Field Weakening
- Yes
- Self-Learning
- Yes
- Dual Motor Support
- No
- Controller Pairing
- No
Inputs
- Throttle Support
- Yes
- PAS Support
- Yes
Display
- Supports Display
- Yes
- Requires Display
- No
- Protocols
- VESC
Power Switch
- Supports Power Switch
- No
- Requires Power Switch
- No
- Requires Pre-charge
- Yes
Programming
- Via Display
- No
- Via Phone
- No
- Via PC
- Yes
Physical
- Dimensions (L×W×H)
- 110mm × 73mm × 52mm
Ports & Connectors
| Pin | Wire color | Function |
|---|---|---|
| 1 | Red | Battery + |
| 2 | Black | Battery - |
| Pin | Wire color | Function |
|---|---|---|
| 1 | Black | Phase A |
| 2 | Black | Phase B |
| 3 | Black | Phase C |
| Pin | Wire color | Function |
|---|---|---|
| 1 | Red | 5V Power |
| 2 | White | Motor Temp |
| 3 | Blue | Hall A |
| 4 | Orange | Hall B |
| 5 | Green | Hall C |
| 6 | Black | Ground |
| Pin | Wire color | Function |
|---|---|---|
| 1 | Black | Ground |
| 2 | Gray | CAN Low |
| 3 | Yellow | CAN High |
| 4 | Red | 5V Power |
| 5 | Red | Slave Power On |
| Pin | Wire color | Function |
|---|---|---|
| 1 | Black | Ground |
| 2 | Red | 5V Power |
| 3 | White | PPM Signal |
| Pin | Wire color | Function |
|---|---|---|
| 1 | Red | 5V Power |
| 2 | Red | 3.3V Power |
| 3 | Black | Ground |
| 4 | Gray | ADC Channel 1 |
| 5 | Purple | UART RX |
| 6 | Orange | UART TX |
| 7 | Blue | ADC Channel 2 |
| 8 | Green | ADC Channel 3 |
