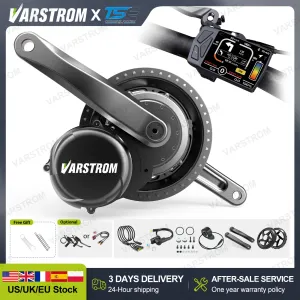

Tongsheng TSDZ16 1000W
The Tongsheng TSDZ16 1000W is Tongsheng's flagship BB-mount mid-drive motor (2025 generation), delivering 160Nm of torque and up to 1440W peak output. Upgraded IPX6 waterproof rating over the TSDZ8, making it suitable for off-road, muddy, and river-crossing conditions. Fits standard 68–73mm bottom brackets. Nylon + external clutch design supports the higher torque output. Smart torque sensor adjusts power proportional to pedaling force.
In brief: 1000W mid-drive motor. Fits 68–73mm bottom bracket. 48V rated. From $281 across 4 sellers.
Specs verified Jul 30, 2026
Where to Find
Prices tracked across 4 sellersAliExpress - Varstrom E-Bike Global Store
$280.80
AliExpress - Shop1105233629 Store (Varstrom)
$286.30
AliExpress - Shop1105233629 Store (Varstrom)
$287.81
AliExpress - 20250704 Store
$329.45
AliExpress - AliExpress - Greenergy Global Store
$621.43
AliExpress - Varstrom E-Bike Global Store
Check seller for price* WattWorks may earn a commission from some sellers linked here. Sellers are ranked by total price and stock status only. Learn more
Price History
Current best price $286.30. Over the past 90 days: low $275.24, high $621.43, average $419.53 — down 32% vs average.
- AliExpress - AliExpress - Greenergy Global Store
- AliExpress - Shop1105233629 Store (Varstrom)
- AliExpress - Shop1105233629 Store (Varstrom)
Reviews
No reviews yet — be the first to share your experience.
Sign in with Google to leave a review.
Specifications
Performance
- Wattage
- 1000W
- Peak Wattage
- 1440W
- Rated Voltage
- 48V
- Max Torque
- 160.00Nm
- Max Speed
- 60km/h
Fitment
- Bottom Bracket Width
- 68mm – 73mm
Features
- PAS Sensor Type
- Torque
- Temp Sensor
- None
Physical
- Weight
- 6.21 kg
- IP Rating
- IPX6
Ports & Connectors
| Pin | Wire color | Function |
|---|---|---|
| 1 | Blue | Battery + |
| 2 | Black | Ground |
| 3 | Red | Power Switch Signal |
| 4 | Brown | UART TX |
| 5 | Yellow | UART RX |
| 6 | Green | Brake Signal (Low) |
| 7 | White | 5V Power |
| 8 | Orange | Throttle Signal |
| Pin | Wire color | Function |
|---|---|---|
| 1 | No color | None |
| 2 | Brown | 5V Power |
| 3 | Green | Low Beam |
| 4 | Orange | Ground |
| 5 | No color | None |
| 6 | White | Speed Signal |
