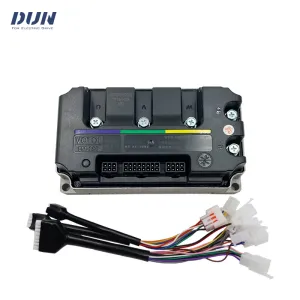

VOTOL EM180 GTS (LIN)
VOTOL EM180 GTS is a mid-range 48-72V FOC sinewave controller with 160A rated DC / 250A boost / 490A peak phase current, suited for 3-5kW PMSM/BLDC motors (QS138 V3, QS205-class hub and mid-drive motors). Features 24 MOSFET design, 200% flux weakening, IP67 waterproofing, and ≥93% max efficiency. Uses VOTOL's Old Version architecture: three Molex Mini-Fit Jr headers (function, hall, alarm) plus screw terminals for battery and phase. Display protocol: ONE-LIN (YXT single-wire bus). Programmable via PC.
In brief: 48–72V controller. 160A continuous. 250A peak. Sinewave, sensored, regen, field weakening support. From $192 across 2 sellers.
Type
- VESC Based
- No
Electrical
- Voltage Range
- 48–72V
- Continuous Amps
- 160A
- Peak Amps
- 250A
- Max Phase Amps
- 490A
Motor Features
- Regen Support
- Yes
- Drive Mode
- Sinewave
- Sensor Mode
- Sensored
- Field Weakening
- Yes
- Self-Learning
- No
- Dual Motor Support
- No
- Controller Pairing
- No
Inputs
- Throttle Support
- Yes
- PAS Support
- No
Display
- Supports Display
- Yes
- Requires Display
- No
- Protocols
- SiAECOSYS ONE-LIN
Power Switch
- Supports Power Switch
- Yes
- Requires Power Switch
- Yes
- Requires Pre-charge
- No
Programming
- Via Display
- No
- Via Phone
- No
- Via PC
- Yes
Physical
- Weight
- 1.2kg
- Dimensions (L×W×H)
- 186.0mm × 107.0mm × 60.0mm
- IP Rating
- IP67
Ports & Connectors
Power Input2-position Screw Terminal Block
Power
1Battery +
2Battery -
Phase Wires3-position Screw Terminal Block
Motor Phase
1Phase A
2Phase B
3Phase C
Hall Sensor/
Hall Sensor
15V Power
2None
3Ground
4Hall A
5Hall B
6Hall C
Function Harness (2×8)
Alarm / Anti-theft Harness (2×4)
Alarm Power
security
1Ground
2Alarm Power
Anti-theft Motor Lock
security
1Anti-Theft Key
2Anti-Theft Signal
3Wheel Signal
4None
