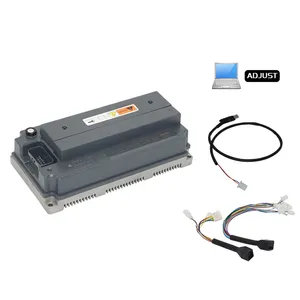

VOTOL EM200-2sp sine wave controller (updated generation). 72V nominal, 200A continuous DC / 250A boost DC / 600A peak phase current. Max power 18000W, 200% flux weakening, ≥92% max efficiency, IP67 waterproof, 2.44kg. Supports FOC sinewave drive, dual-protocol (LIN and CAN BUS selectable via software). Hall sensored with regenerative braking. Programmable via PC with USB adapter cable. Designed for 4-8kW PMSM/BLDC motors — commonly paired with QS 138 V3 IPM, QS 205 (5kW), and similar high-power hub/mid-drive motors in e-moto / Sur-Ron-class builds. Updated design vs base EM200: single AMP connector replaces dual Molex (more reliable wiring), smaller size, better heat dissipation, improved waterproofing, and shared function-harness compatibility with EM150-2 and EM260 controllers (one harness fits all three). Dimensions: 249×138mm (with mounting tabs) / 234×123mm body / 74mm tall / 63mm body height. Ships with function harness and USB programming cable.

In brief: 48–72V controller. 200A continuous. 250A peak. Sinewave, dual mode, regen, field weakening support. From $228 across 2 sellers.

Specs verified Sep 12, 2026

Price History

Price History
Price changes tracked by the crawler

Current best price $369.47. Over the past 90 days: low $367.79, high $369.47, average $367.86 — about average.

  • AliExpress
Aug 15Aug 17Aug 19Aug 21Aug 23Aug 25Aug 27Aug 29Aug 31Sep 2Sep 4Sep 6Sep 8$367.50$368.00$368.50$369.00$369.50

Reviews

No reviews yet — be the first to share your experience.

Sign in with Google to leave a review.

Specifications

Type

VESC Based
No
Cooling
Air

Electrical

Voltage Range
48–72V
Continuous Amps
200A
Peak Amps
250A
Max Phase Amps
600A

Motor Features

Regen Support
Yes
Drive Mode
Sinewave
Sensor Mode
Dual Mode
Field Weakening
Yes
Self-Learning
No
Dual Motor Support
No
Controller Pairing
No

Inputs

Throttle Support
Yes
PAS Support
No

Display

Supports Display
Yes
Requires Display
No
Protocols
SiAECOSYS ONE-LIN, SiAECOSYS CAN BUS

Power Switch

Supports Power Switch
Yes
Requires Power Switch
No
Requires Pre-charge
Yes

Programming

Via Display
No
Via Phone
No
Via PC
Yes

Physical

Weight
2.44 kg
Dimensions (L×W×H)
249mm × 138mm × 74mm
IP Rating
IP67

Ports & Connectors

Power Input2-position Screw Terminal Block
Power
PinWire colorFunction
1RedBattery +
2BlackBattery -
Phase Wires3-position Screw Terminal Block
Motor Phase
PinWire colorFunction
1YellowPhase A
2GreenPhase B
3BluePhase C
Main Signal Connector (Ampseal 23-pin)
E-lock
Power Switch
PinWire colorFunction
1RedBattery +
2OrangePower Switch Signal
LIN1 wire
Display
PinWire colorFunction
1WhiteOne-Wire Comm
Mode (1,2,3)
Display
PinWire colorFunction
1Green / WhiteGear Low
2Yellow / WhiteGear Medium
3Black / WhiteGear High
R mode
Display
PinWire colorFunction
1Gray / WhiteGear Reverse
2BlackGround
S mode
Display
PinWire colorFunction
1Yellow / WhiteGear Sport
Throttle
Throttle
PinWire colorFunction
1Red5V Power
2BlackGround
3GreenThrottle Signal
High Brake
Brake
PinWire colorFunction
1PurpleBrake Signal (High)
P mode
Brake
PinWire colorFunction
1Brown / WhiteParking / E-Brake
Program Debugging
UART
PinWire colorFunction
1BlackGround
2Pink5V Power
3OrangeUART TX
4BlueUART RX
Main Connector

Included Components
