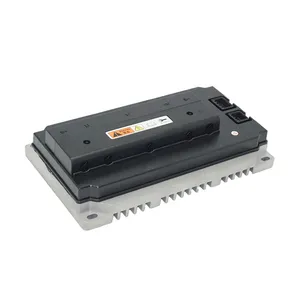

VOTOL EM200 SP (LIN/CAN)
VOTOL EM200 SP sine wave controller (older/Old Version generation — VOTOL's internal name: 'EM200P'). 72V nominal, 200A continuous DC / 245A boost DC / 550A peak phase current. Max power 17640W, 300% flux weakening, ≥92% max efficiency, IP67 waterproof, 2.86kg. Supports FOC sinewave drive. Hall sensored with regenerative braking. Programmable via PC with USB adapter cable (Old Version cable, shared with EM50P, EM100P, EM150SP). Designed for 4-8kW PMSM/BLDC motors — commonly paired with QS 205 (5kW), QS 138 V3, and similar high-power hub/mid-drive motors in e-moto / Sur-Ron-class builds. Ships with function harness and USB programming cable. Older dual-Molex-connector design. Superseded by the EM200-2sp (VOTOL's 'EM200-2P') which uses a newer single-AMP-connector architecture with improved heat dissipation and waterproofing — older EM200 SP units still widely available at similar price point. Dimensions: 285×168mm (overall with mounting tabs) / 258×154mm (body) / 69mm tall.
In brief: 48–72V controller. 200A continuous. 245A peak. Sinewave, dual mode, regen, field weakening support.
Specs verified May 29, 2026
Where to Find
Prices tracked across 1 seller* Shipping estimates are for the contiguous US and may vary by location.
* This page contains affiliate links. WattWorks may earn a commission at no extra cost to you. Learn more
Price History
Current best price $310.11. Over the past 90 days: low $308.44, high $310.11, average $309.34 — about average.
- AliExpress - DUN TECH Store
| Date | Price | Shipping | Total | Change | Coupon | Rating | Sales | In Stock | Status |
|---|---|---|---|---|---|---|---|---|---|
AliExpress - DUN TECH Store(14 records) | |||||||||
| May 29, 202606:35 PM | $310.11 | $70.82 | $380.93 | $0.00 | — | — | — | No | active |
| May 28, 202604:35 PM | $310.11 | $70.82 | $380.93 | $0.20 | — | — | — | No | active |
| May 27, 202605:56 PM | $309.91 | $70.77 | $380.68 | $0.84 | — | — | — | No | active |
| May 25, 202610:29 PM | $309.07 | $70.58 | $379.65 | $0.00 | — | — | — | No | active |
| May 23, 202605:48 PM | $309.07 | $70.58 | $379.65 | $0.00 | — | — | — | No | active |
| May 22, 202603:45 PM | $309.07 | $70.58 | $379.65 | $0.21 | USSS05−$5.00 | — | — | No | active |
| May 21, 202603:49 PM | $309.28 | $70.63 | $379.91 | $0.00 | USSS35−$35.00 | — | — | No | active |
| May 19, 202603:52 PM | $309.28 | $70.63 | $379.91 | $0.84 | USSS35−$35.00 | — | — | No | active |
| May 18, 202603:49 PM | $308.44 | $70.44 | $378.88 | $0.84 | USSS12−$12.00 | — | — | No | active |
| May 17, 202601:53 PM | $309.28 | $70.63 | $379.91 | $0.00 | — | — | — | No | active |
| May 16, 202601:59 PM | $309.28 | $70.63 | $379.91 | $0.00 | — | — | — | No | active |
| May 15, 202601:07 PM | $309.28 | $70.63 | $379.91 | $0.21 | SRUS02−$2.00 | — | — | No | active |
| May 14, 202603:20 PM | $309.49 | $70.67 | $380.16 | $0.00 | SRUS04−$4.00 | — | — | No | active |
| May 12, 202611:37 AM | $309.49 | $70.67 | $380.16 | Initial | SRUS38−$38.00 | — | — | No | active |
Reviews
No reviews yet — be the first to share your experience.
Sign in with Google to leave a review.
Specifications
Type
- VESC Based
- No
- Cooling
- Air
Electrical
- Voltage Range
- 48–72V
- Continuous Amps
- 200A
- Peak Amps
- 245A
- Max Phase Amps
- 550A
Motor Features
- Regen Support
- Yes
- Drive Mode
- Sinewave
- Sensor Mode
- Dual Mode
- Field Weakening
- Yes
- Self-Learning
- No
- Dual Motor Support
- No
- Controller Pairing
- No
Inputs
- Throttle Support
- Yes
- PAS Support
- No
Display
- Supports Display
- Yes
- Requires Display
- No
- Protocols
- SiAECOSYS ONE-LIN, SiAECOSYS CAN BUS
Power Switch
- Supports Power Switch
- Yes
- Requires Power Switch
- No
- Requires Pre-charge
- Yes
Programming
- Via Display
- No
- Via Phone
- No
- Via PC
- Yes
Physical
- Weight
- 2.86 kg
- Dimensions (L×W×H)
- 285mm × 168mm × 69mm
- IP Rating
- IP67
Ports & Connectors
| Pin | Wire color | Function |
|---|---|---|
| 1 | Red | Battery + |
| 2 | Black | Battery - |
| Pin | Wire color | Function |
|---|---|---|
| 1 | Yellow | Phase A |
| 2 | Green | Phase B |
| 3 | Blue | Phase C |
| Pin | Wire color | Function |
|---|---|---|
| 1 | Red | Battery + |
| 2 | Orange | Power Switch Signal |
| Pin | Wire color | Function |
|---|---|---|
| 1 | White | One-Wire Comm |
| Pin | Wire color | Function |
|---|---|---|
| 1 | Green / White | Gear Low |
| 2 | Yellow / White | Gear Medium |
| 3 | Black / White | Gear High |
| Pin | Wire color | Function |
|---|---|---|
| 1 | Gray / White | Gear Reverse |
| 2 | Black | Ground |
| Pin | Wire color | Function |
|---|---|---|
| 1 | Yellow / White | Gear Sport |
| Pin | Wire color | Function |
|---|---|---|
| 1 | Red | 5V Power |
| 2 | Black | Ground |
| 3 | Green | Throttle Signal |
| Pin | Wire color | Function |
|---|---|---|
| 1 | Purple | Brake Signal (High) |
| Pin | Wire color | Function |
|---|---|---|
| 1 | Black | Ground |
| 2 | Pink | 5V Power |
| 3 | Orange | UART TX |
| 4 | Blue | UART RX |
| Pin | Wire color | Function |
|---|---|---|
| 1 | Red | 5V Power |
| 2 | No color | None |
| 3 | Black | Ground |
| 4 | Yellow | Hall A |
| 5 | Green | Hall B |
| 6 | Blue | Hall C |
| Pin | Wire color | Function |
|---|---|---|
| 1 | Red | Battery + |
| 2 | Orange | Power Switch Signal |
| Pin | Wire color | Function |
|---|---|---|
| 1 | Red | Alarm Power |
| 2 | Gray | Anti-Theft Signal |
