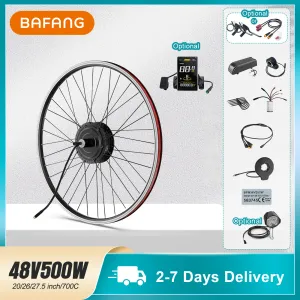

Bafang G020 500W Rear Hub
Options
Position
Front Hub$321.31Rear Hub
The Bafang G020 500W is a geared hub motor designed for standard e-bike conversions. Compatible with 20–700C wheel sizes, it supports disc brakes and delivers 45 Nm of torque at 48V. Available in front (100mm) and rear (135–142mm) dropout configurations. IPX5 waterproof rated.
In brief: 500W geared rear hub motor. Fits 135.0–142.0mm dropout. 48V rated. Disc brake compatible. From $289 across 2 sellers.
Where to Find
Prices tracked across 2 sellersAliExpress - Varstromebike Store
$289.49 $249.49 + free shipping
$40.00 offon orders over $249.00SSUS40· expires Jun 11
AliExpress - Varstromebike Store
$518.20 $478.20 + free shipping
$40.00 offon orders over $249.00SSUS40· expires Jun 11
AliExpress - Varstromebike Store
Check seller for priceAliExpress
Out of stockAliExpress
Out of stockAliExpress
Out of stockAliExpress
Out of stock* This page contains affiliate links. WattWorks may earn a commission at no extra cost to you. Learn more
Specifications
Performance
- Drive Type
- Geared
- Wattage
- 500W
- Rated Voltage
- 48V
- Max Torque
- 45.00Nm
Fitment
- Position
- Rear
- Dropout Width
- 135mm – 142mm
- Axle Size
- M14
Wheel
- Pre-laced
- No
- Disc Brake
- Yes
- Spoke Holes
- 36
- Freehub Type
- Shimano HG (Hyperglide)
Ports & Connectors
Phase Wires3 wires
Motor Phase
1Phase A
2Phase B
3Phase C
Hall Sensor5-pin SPECIAL 5 Wires (Genderless)
Hall Sensor
15V Power
2Ground
3Hall A
4Hall B
5Hall C
