What voltage range does the VOTOL EM180 GTS support?

The VOTOL EM180 GTS supports 48–72V.

What is the continuous current rating of the VOTOL EM180 GTS?

It is rated for 160A continuous and 250A peak.

What features does the VOTOL EM180 GTS have?

The VOTOL EM180 GTS supports Sinewave, regenerative braking, field weakening.

Does the VOTOL EM180 GTS support sensored or sensorless motors?

The VOTOL EM180 GTS operates in sensored mode.

What comes included with the VOTOL EM180 GTS?

The VOTOL EM180 GTS comes with: VOTOL EM/SV-series Function Harness (CAN) (included), VOTOL EM/SV-series Alarm Harness (included). These components are automatically added to your build when you select this product.

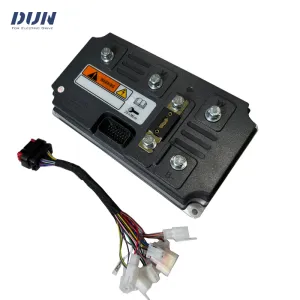

VOTOL EM180 GTS

Name: VOTOL EM180 GTS
Brand: VOTOL
Availability: InStock

VOTOL Controller

Find Compatible Components

VOTOL EM180 GTS is a mid-high-power 48-72V sinewave controller with 160A rated DC / 250A boost / 490A peak phase current. 2025 design suited for 3-5kW PMSM/BLDC motors — commonly paired with QS 3000-5000W hub or mid-drive motors. V2 revision supports 4-6kW motors. Features flux weakening, IP67 waterproofing, LIN/CAN communication. Uses VOTOL's standard EM/SV-series Wiring A architecture: 3 flush Mini-Fit Jr headers + screw terminals. Programmable via PC.</description> <parameter name="adminNotes">Source: AliExpress (multiple listings, primarily Dun Electric / CycleFun family). Authoritative specs: - Rated DC 160A / Boost DC 250A / Peak Phase 490A - 48-72V / 3-5kW motor (V2: 4-6kW) - IP67 / Hall sensor / LIN + CAN **Wiring (admin-verified 2026-04-18):** Standard Wiring A (flush Mini-Fit Jr 3-Molex + screw terminals). Per admin confirmation. **Likely duplicate of SV200 GTS:** EM180 GTS spec (250A boost / 490A phase) matches the SV200 GTS hardware exactly. Several AliExpress sellers cross-list this product as 'EM180GTS SV200'. This may be the same physical controller marketed under two different names (EM180 GTS → later rebranded as SV200 GTS). Components are kept separate in wattworks per seller listings; admin should review whether to merge or keep both. SV200 GTS (56ed0b91 / d6b9cf2a) is a newer SV-series design with 186×107×60mm housing — size/weight may differ from EM180 GTS (sizes not confirmed here).

In brief: 48–72V controller. 160A continuous. 250A peak. Sinewave, sensored, regen, field weakening support. From $173 across 2 sellers.
