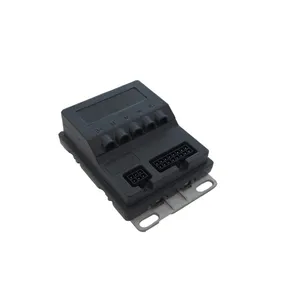

VOTOL EM25P (LIN, No CAN)
VOTOL EM25P is an entry-level 48V/60V sinewave controller with 25A rated DC current, suited for 1000-1200W PMSM/BLDC motors in small e-scooter / e-bike builds. 'P' variant is LIN-only with no CAN BUS support and no anti-theft system — the cheapest tier in VOTOL's EM-series. Features flux weakening, IP65 waterproofing, programmable via PC. Uses a simplified subset of VOTOL's 'Old Version' EM/SV-series connector architecture: 2 flush Mini-Fit Jr headers (function 2×8 + hall 2×3) + screw terminals for power/phase. No alarm/anti-theft port.
In brief: 48–72V controller. 25A continuous. 40A peak. Sinewave, sensored, regen, field weakening support.
Type
- VESC Based
- No
Electrical
- Voltage Range
- 48–72V
- Continuous Amps
- 25A
- Peak Amps
- 40A
- Max Phase Amps
- 120A
Motor Features
- Regen Support
- Yes
- Drive Mode
- Sinewave
- Sensor Mode
- Sensored
- Field Weakening
- Yes
- Self-Learning
- No
- Dual Motor Support
- No
- Controller Pairing
- No
Inputs
- Throttle Support
- Yes
- PAS Support
- No
Display
- Supports Display
- Yes
- Requires Display
- No
- Protocols
- SiAECOSYS ONE-LIN
Power Switch
- Supports Power Switch
- Yes
- Requires Power Switch
- No
- Requires Pre-charge
- No
Programming
- Via Display
- No
- Via Phone
- No
- Via PC
- Yes
Physical
- Weight
- 600g
- IP Rating
- IP65
Ports & Connectors
Power Input2-position Screw Terminal Block
Power
1Battery +
2Battery -
Phase Wires3-position Screw Terminal Block
Motor Phase
1Phase A
2Phase B
3Phase C
Hall Sensor/
Hall Sensor
15V Power
2None
3Ground
4Hall A
5Hall B
6Hall C
Function Harness (2×8)
