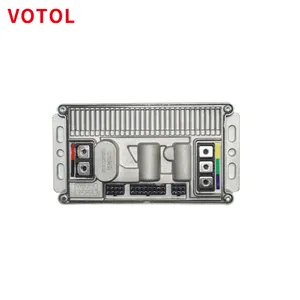

VOTOL EM50-6 (LIN)
VOTOL EM50-6 is a higher-power variant of the EM50 family — 72V sinewave controller with 60A rated battery current and 170A peak current, suited for 2000W e-moto / e-scooter builds. Features flux weakening, IP67 waterproofing, and LIN communication. Uses VOTOL's 'Old Version' EM/SV-series connector architecture: 3 flush Mini-Fit Jr headers + screw terminals. Programmable via PC. The 'EM50-6' marks this as the 6th hardware revision in the EM50 LIN line.
In brief: 48–72V controller. 60A continuous. 80A peak. Sinewave, dual mode, regen, field weakening support. From $80 across 2 sellers.
Specs verified May 29, 2026
Where to Find
Prices tracked across 3 sellersAliExpress - SiAECOSYS Electric Powertrain Store Store
$79.86 + $24.94 shipping
AliExpress - Zhejiang Siaecosys Technology Co., Ltd. Store
$85.23 + $24.94 shipping
AliExpress - SIA Tech Store
Out of stock* Shipping estimates are for the contiguous US and may vary by location.
* WattWorks may earn a commission from some sellers linked here. Sellers are ranked by total price and stock status only. Learn more
Price History
No price history data yet
History is recorded when the crawler detects price changes or when product link prices are manually updated.
Reviews
No reviews yet — be the first to share your experience.
Sign in with Google to leave a review.
Specifications
Type
- VESC Based
- No
- Cooling
- Air
Electrical
- Voltage Range
- 48–72V
- Continuous Amps
- 60A
- Peak Amps
- 80A
- Max Phase Amps
- 170A
Motor Features
- Regen Support
- Yes
- Drive Mode
- Sinewave
- Sensor Mode
- Dual Mode
- Field Weakening
- Yes
- Self-Learning
- No
- Dual Motor Support
- No
- Controller Pairing
- No
Inputs
- Throttle Support
- Yes
- PAS Support
- No
Display
- Supports Display
- Yes
- Requires Display
- No
- Protocols
- SiAECOSYS ONE-LIN
Power Switch
- Supports Power Switch
- Yes
- Requires Power Switch
- No
- Requires Pre-charge
- No
Programming
- Via Display
- No
- Via Phone
- No
- Via PC
- Yes
Physical
- Weight
- 750 g
- IP Rating
- IP67
Ports & Connectors
| Pin | Wire color | Function |
|---|---|---|
| 1 | Red | Battery + |
| 2 | Black | Battery - |
| Pin | Wire color | Function |
|---|---|---|
| 1 | Yellow | Phase A |
| 2 | Green | Phase B |
| 3 | Blue | Phase C |
| Pin | Wire color | Function |
|---|---|---|
| 1 | Red | 5V Power |
| 2 | No color | None |
| 3 | Black | Ground |
| 4 | Yellow | Hall A |
| 5 | Green | Hall B |
| 6 | Blue | Hall C |
| Pin | Wire color | Function |
|---|---|---|
| 1 | Gray / Purple | Power Switch Signal |
| Pin | Wire color | Function |
|---|---|---|
| 1 | Purple | Brake Signal (High) |
| 2 | White | One-Wire Comm |
| 3 | No color | None |
| 4 | Black | Ground |
| 5 | Green | Throttle Signal |
| 6 | Pink | 5V Power |
| Pin | Wire color | Function |
|---|---|---|
| 1 | Brown / White | Parking / E-Brake |
| 2 | Green / White | Gear Low |
| 3 | Yellow / White | Gear Sport |
| 4 | No color | None |
| 5 | Black | Ground |
| 6 | Black / White | Gear High |
| Pin | Wire color | Function |
|---|---|---|
| 1 | No color | None |
| 2 | Gray / White | Gear Reverse |
| 3 | No color | None |
| 4 | Gray / Black | Brake Signal (Low) |
| Pin | Wire color | Function |
|---|---|---|
| 1 | Black | Ground |
| 2 | Pink | 5V Power |
| 3 | Orange | UART TX |
| 4 | Blue | UART RX |
| Pin | Wire color | Function |
|---|---|---|
| 1 | No color | None |
| 2 | Brown | One-Click Repair |
| Pin | Wire color | Function |
|---|---|---|
| 1 | Black | Ground |
| 2 | Red | Alarm Power |
| Pin | Wire color | Function |
|---|---|---|
| 1 | Orange | Anti-Theft Key |
| 2 | Blue | Anti-Theft Signal |
| 3 | Yellow | Wheel Signal |
| 4 | No color | None |
