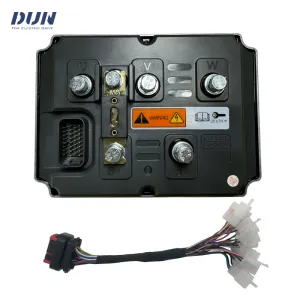

VOTOL EM350S
VOTOL EM350S is a very-high-power 48-72V sinewave controller with 350A rated DC / 600A boost / 1300A peak phase (≤43.2kW max power). 48-MOSFET design suited for 10-12kW PMSM/BLDC motors in extreme e-moto builds. Features 200% flux weakening, IP67 waterproofing, ≥92% max efficiency. Uses VOTOL's New Version architecture: TE Ampseal 23-pin main signal connector + screw terminals. Dual-protocol: SIAECOSYS LIN and CAN BUS displays supported. Programmable via PC with the V2 CAN USB cable.</description> <parameter name="adminNotes">Source: AliExpress SIAECOSYS Electric Drive Store + SIA Tech Store + Dun Electric Store listings. Authoritative specs: - Rated DC 350A / Boost DC 600A / Peak Phase 1300A - 48-72V / Max Power 43,200W / 48 FETs - Matched motor: 10-12kW - Max Efficiency 92% / IP67 / 200% flux weakening - Weight 2800g / Size 220×161×90mm VOTOL naming: also called 'EM350sp' or 'EM350P' (shares New Version USB cable with EM260P / EM150-2SP / EM200-2P). New Version Ampseal 23-pin architecture. Dual-protocol.
In brief: 48–72V controller. 350A continuous. 600A peak. Sinewave, sensored, regen, field weakening support. From $664 across 2 sellers.
Type
- VESC Based
- No
Electrical
- Voltage Range
- 48–72V
- Continuous Amps
- 350A
- Peak Amps
- 600A
- Max Phase Amps
- 1300A
Motor Features
- Regen Support
- Yes
- Drive Mode
- Sinewave
- Sensor Mode
- Sensored
- Field Weakening
- Yes
- Self-Learning
- No
- Dual Motor Support
- No
- Controller Pairing
- No
Inputs
- Throttle Support
- Yes
- PAS Support
- No
Display
- Supports Display
- Yes
- Requires Display
- No
- Protocols
- SiAECOSYS ONE-LIN, SiAECOSYS CAN BUS
Power Switch
- Supports Power Switch
- Yes
- Requires Power Switch
- Yes
- Requires Pre-charge
- Yes
Programming
- Via Display
- No
- Via Phone
- No
- Via PC
- Yes
Physical
- Weight
- 2.8kg
- Dimensions (L×W×H)
- 220.0mm × 161.0mm × 90.0mm
