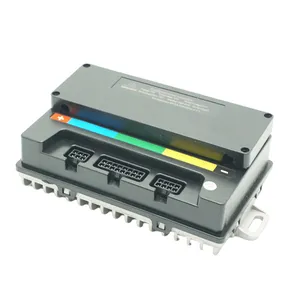

VOTOL EM50S is a compact 48-72V sinewave controller with 50A rated DC / 60A boost / 190A peak phase current, suited for 1500-2000W PMSM/BLDC motors up to 55 KPH. Dual-protocol: supports both SIAECOSYS LIN and CAN BUS displays (selectable via software). Features 120% flux weakening, IP67 waterproofing, programmable via PC. Uses VOTOL's standard EM/SV-series Wiring A architecture: 3 flush Mini-Fit Jr headers + screw terminals. Compatible with the DKD Display which speaks both protocols. Net weight 1 kg.

In brief: 48–72V controller. 50A continuous. 60A peak. Sinewave, dual mode, regen, field weakening support. From $62 across 6 sellers.

Specs verified Sep 12, 2026

Price History

Price History
Price changes tracked by the crawler

Current best price $106.66. Over the past 90 days: low $62.80, high $179.36, average $154.09 — down 31% vs average.

  • AliExpress - CycleFun Store
  • AliExpress
Jul 7Jul 13Jul 19Jul 25Jul 31Aug 6Aug 12Aug 18Aug 24Aug 30Sep 5$60.00$90.00$120.00$150.00$180.00

Reviews

No reviews yet — be the first to share your experience.

Sign in with Google to leave a review.

Specifications

Type

VESC Based
No
Cooling
Air

Electrical

Voltage Range
48–72V
Continuous Amps
50A
Peak Amps
60A
Max Phase Amps
190A

Motor Features

Regen Support
Yes
Drive Mode
Sinewave
Sensor Mode
Dual Mode
Field Weakening
Yes
Self-Learning
No
Dual Motor Support
No
Controller Pairing
No

Inputs

Throttle Support
Yes
PAS Support
No

Display

Supports Display
Yes
Requires Display
No
Protocols
SiAECOSYS ONE-LIN, SiAECOSYS CAN BUS

Power Switch

Supports Power Switch
Yes
Requires Power Switch
No
Requires Pre-charge
No

Programming

Via Display
No
Via Phone
No
Via PC
Yes

Physical

Weight
1 kg
Dimensions (L×W×H)
198mm × 100mm × 72mm
IP Rating
IP67

Ports & Connectors

Power Input2-position Screw Terminal Block
Power
PinWire colorFunction
1RedBattery +
2BlackBattery -
Phase Wires3-position Screw Terminal Block
Motor Phase
PinWire colorFunction
1YellowPhase A
2GreenPhase B
3BluePhase C
Hall Sensor/
Hall Sensor
PinWire colorFunction
1Red5V Power
2No colorNone
3BlackGround
4YellowHall A
5GreenHall B
6BlueHall C
Alarm / Anti-theft Harness (2×4)
Alarm Power
security
PinWire colorFunction
1BlackGround
2RedAlarm Power
Anti-theft Motor Lock
security
PinWire colorFunction
1OrangeAnti-Theft Key
2BlueAnti-Theft Signal
3YellowWheel Signal
4No colorNone
Main Connector
Function Harness (2×8)
Ignition
Power Switch
PinWire colorFunction
1Gray / PurplePower Switch Signal
Low Brake / Reverse
DisplayBrake
PinWire colorFunction
1No colorNone
2Gray / WhiteGear Reverse
3No colorNone
4Gray / BlackBrake Signal (Low)
Three Speed / Sport / Parking
BrakeDisplay
PinWire colorFunction
1Brown / WhiteParking / E-Brake
2Green / WhiteGear Low
3Yellow / WhiteGear Sport
4No colorNone
5BlackGround
6Black / WhiteGear High
Throttle / High Brake / Display
BrakeCAN BusThrottle
PinWire colorFunction
1PurpleBrake Signal (High)
2WhiteCAN High
3YellowCAN Low
4BlackGround
5GreenThrottle Signal
6Pink5V Power
Program Port
UART
PinWire colorFunction
1BlackGround
2Pink5V Power
3OrangeUART TX
4BlueUART RX
One Click Repair
COMM
PinWire colorFunction
1No colorNone
2BrownOne-Click Repair
Main Connector
