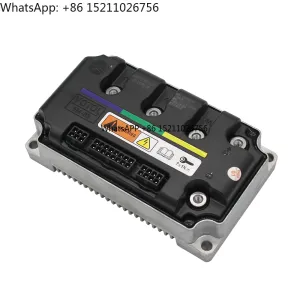

VOTOL EM85 (72300S)
VOTOL EM85-72300S is a compact 48-72V sinewave controller with ~45A rated DC / 85A boost / 300A peak phase current, suited for 800-2000W PMSM/BLDC motors. Sits between EM80 GTSP and EM100 in VOTOL's lineup. Features flux weakening, IP65 waterproofing, LIN communication. Uses VOTOL's standard EM/SV-series Wiring A architecture: 3 flush Mini-Fit Jr headers + screw terminals. Programmable via PC. 1kg / 166×96×48mm.
In brief: 48–72V controller. 45A continuous. 85A peak. Sinewave, sensored, regen, field weakening support. From $127 across 2 sellers.
Type
- VESC Based
- No
Electrical
- Voltage Range
- 48–72V
- Continuous Amps
- 45A
- Peak Amps
- 85A
- Max Phase Amps
- 300A
Motor Features
- Regen Support
- Yes
- Drive Mode
- Sinewave
- Sensor Mode
- Sensored
- Field Weakening
- Yes
- Self-Learning
- No
- Dual Motor Support
- No
- Controller Pairing
- No
Inputs
- Throttle Support
- Yes
- PAS Support
- No
Display
- Supports Display
- Yes
- Requires Display
- No
- Protocols
- SiAECOSYS ONE-LIN
Power Switch
- Supports Power Switch
- Yes
- Requires Power Switch
- No
- Requires Pre-charge
- No
Programming
- Via Display
- No
- Via Phone
- No
- Via PC
- Yes
Physical
- Weight
- 1kg
- Dimensions (L×W×H)
- 166.0mm × 96.0mm × 48.0mm
- IP Rating
- IP65
Ports & Connectors
Power Input2-position Screw Terminal Block
Power
1Battery +
2Battery -
Phase Wires3-position Screw Terminal Block
Motor Phase
1Phase A
2Phase B
3Phase C
Hall Sensor/
Hall Sensor
15V Power
2None
3Ground
4Hall A
5Hall B
6Hall C
Function Harness (2×8)
Alarm / Anti-theft Harness (2×4)
Alarm Power
security
1Ground
2Alarm Power
Anti-theft Motor Lock
security
1Anti-Theft Key
2Anti-Theft Signal
3Wheel Signal
4None
